S80 / S80D

S80
Smart and bright

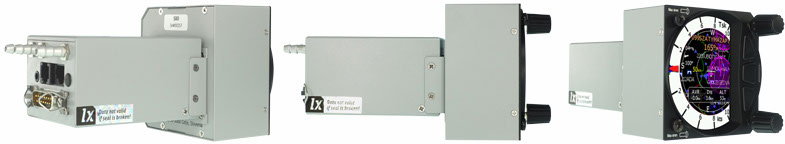

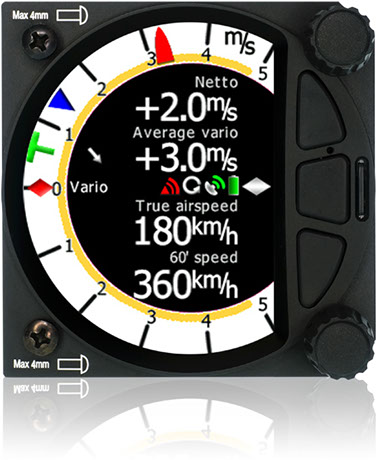

Standalone digital variometer, final glide calculator and navigation system with moving map. • Extremely bright 3.5’’ (9cm) color display, readable in all sunlight conditions with the ability to adjust the backlight. • Two rotary switches (knobs) with push button function and three push buttons are used for input. • GPS and PDA inputs/outputs • Flarm Indication, when Flarm is connected to the GPS port • Additional Flarm radar screen and (optional) artificial horizon • Inertial assisted high precision pressure sensors • Built-in voice module and AHRS • Easy firmware upgrades via SD card • fast wind calculation with external compass • Indicator Ø80mm, 80x80x45mm • Sensor box: 65x45x85mm • Consumption at 12V from 140mA

Main Features ARM Cortex-M4 processor running on 160MHz 3.5'' QVGA sunlight readable screen with 1200nits QVGA (320*240pixels) sunlight readable display Digital temperature compensated pressure sensors for altitude and airspeed inertial platform 3 axis digital +-8g accelerometer, 3 gyroscopes (for inertial vario, AHRS and wind calculation) Smooth audio output Audio equalizer integrated synthesized speech output audible thermal assistant External SD card for configuration, flarmnet and firmware update 2 rotary switches (knobs) with push button function and 3 push buttons are used for input ALS (ambient light sensor) 6 digital inputs - SC, VP + 4 custom defined 80 mm air norm size User Interface Moving map with airspace track up option Airspace display Waypoints and Task display AHRS display (optional) Thermal assistant Display of 4 configurable (navboxes) values Display of 3 configurable (navboxes) values on map screen Waypoint navigation TASK navigation Flarm radar Flarm warnings Flarm Net Color display 16 bit color display 3.5” (9cm) screen 320 by 240 pixel resolution 1200 cd brightness Input and output GPS port input/output on RS232 level (standard IGC 6 pin connector RJ11) PDA port input/output on RS232 or TTL level for PDA/PNA devices with 5V power supply (8 pin RJ 45, 5V output max 2A) Audio output 1Mbit CAN bus for connection for S8D repeater, Compass module or remote stick Speed command and Vario priority input and 4 additional user defined inputs Two Rotary knobs with push function 3 push buttons Optional accessories AHRS activation with a CODE - no need of any hardware upgrade Remote stick Compass module (not supported yet - under development) S80D repeater unit Oudie Bluetooth module Nano/Nano3 Power supply Power input 10-16V DC Consumption of LXNAV S80 at 12 V: 140 mA - minimum brightness without audio 190 mA - maximum brightness without audio Consumption of LXNAV S80D at 12 V: 90 mA - minimum brightness without audio 140 mA - maximum brightness without audio Size and weight 80 mm (3.15") standard aircraft cut-out for the LXNAV S80 indicator unit 81x81x45mm Sensor box: 65x45x85mm (not including connector) All together: 81x81x132mm (not including connector) Weight: 460g (290g for S80D) sS80_00 sS80_01 sS80_02 sS80_00 sS80_00 sS80_00 sS80_02 sS80_00 sS80_00 sS80_00 sS80_00 sS80_00 sS80_00 sS80_00 sS80_00 sS80_00 Images
