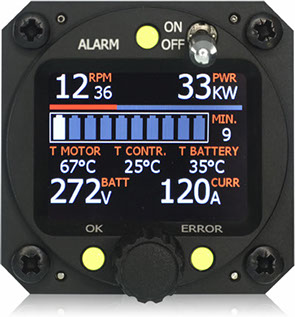

Front electric sustainer control unit FES control unit has full controll over electric motor and battery management.

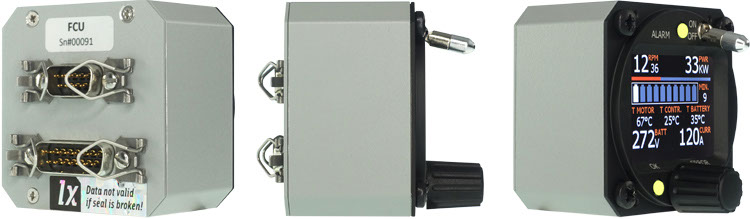

 Technical specification - Functions supported by HW - Size And Weight - Images Main Features Technical specification: 1 - RPM input 2 - LED INPUT 1 - digital output for BRAKE 1 - analog output for POWER (adjustable with rotary knob) 4 - temperature (Controller/Motor/ 2 - battery) Audio signal 1 - analog input for measuring current 1 - analog input for maesuring voltage 1 - rs232 input for firmware update 1 - input for canopy open switch 1 - CAN bus 1 - rs232 input for firmware update 1 - rotary and push button ON/OFF switch Functions not supported by software, but supported in HW: 1 - rs485 1 - additional analog input Sunlight readable QVGA LCD (320 - 240). Consumption cca 100mA. Size and weight Standard 57mm hole 60mm - 60mm - 25mm Weight 157g Images
