JDU

Jet Control Unit
Jet control unit has full controll over Jet engine, fuel consumption and pylon control.

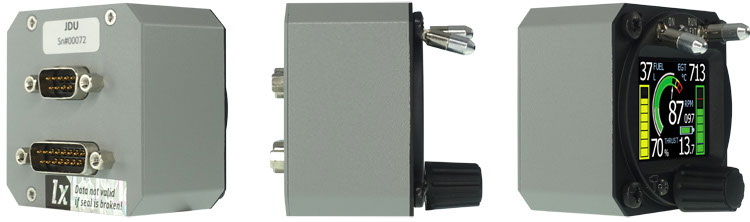

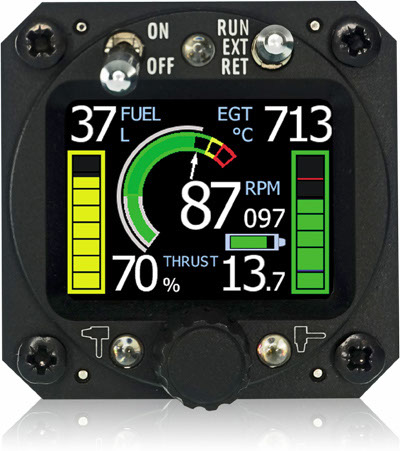

Technical specification: Digital output (5V) Analog output (0V to 4.5V) 4 digital temperature input for DS1820 Audio signal - internal RPM digital input 3 digital inputs Analog input for fuel level Analog input for maesuring voltage Analog input for external throttle controll CAN bus interface rs485 interface rs232 interface Sunlight readable QVGA LCD (320 -240) Consumption cca 100mA Size and weight Standard 57mm hole 60mm -60mm -25mm Weight 157g Images 1 - RPM input 2 - LED INPUT 1 - digital output for BRAKE 1 - analog output for POWER (adjustable with rotary knob) 4 - temperature (Controller/Motor/ 2 - battery) Audio signal 1 - analog input for measuring current 1 - analog input for maesuring voltage 1 - rs232 input for firmware update 1 - input for canopy open switch 1 - CAN bus 1 - rs232 input for firmware update 1 - rotary and push button ON/OFF switch Functions not supported by software, but supported in HW: 1 - rs485 1 - additional analog input Sunlight readable QVGA LCD (320 - 240). Consumption cca 100mA. Size and weight Standard 57mm hole 60mm - 60mm - 25mm Weight 157g Images
