S8 / S8D

S8
Small and bright

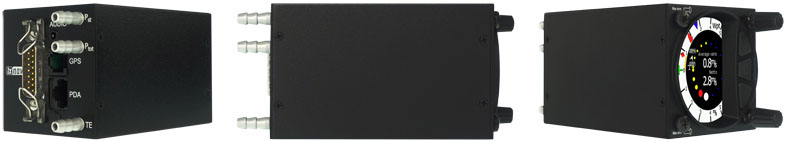

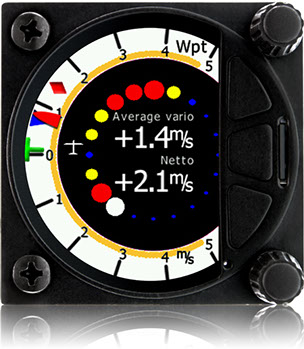

Standalone digital variometer, final glide calculator and navigation system with moving map. • Extremely bright 2.5’’ (~ 6.5cm) color display, readable in all sunlight conditions with the ability to adjust the backlight. • Two rotary switches (knobs) with push button function and three push buttons are used for input. • GPS and PDA inputs/outputs • Flarm Indication, when Flarm is connected to the GPS port • Additional Flarm radar screen and artificial horizon • Inertial assisted high precision pressure sensors • Built-in voice module and AHRS • Easy firmware upgrades via SD card • fast wind calculation with external compass • Indicator Ø57mm, 61x61x95mm •320g • Consumption at 12V from 110mA

Main Features
Main Features ARM Cortex-M4 processor running on 160MHz 2.5'' QVGA sunlight readable screen with 1200nits QVGA (320*240pixels) sunlight readable display Digital temperature compensated pressure sensors for altitude and airspeed inertial platform 3 axis digital +-8g accelerometer, 3 gyroscopes (for inertial vario, AHRS and wind calculation - AHRS can be activated with code) Smooth audio output Audio equalizer integrated synthesized speech output audible thermal assistant External SD card for configuration, flarmnet and firmware update 2 rotary switches (knobs) with push button function and 3 push buttons are used for input ALS (ambient light sensor) 6 digital inputs - SC, VP + 4 custom defined 57 mm air norm Color display 16 bit color display 2.5”(~ 6.5cm) screen 320 by 240 pixel resolution Input and output GPS port input/output on RS232 level (standard IGC 6 pin connector RJ11) PDA port input/output on RS232 or TTL level for PDA/PNA devices with 5V power supply (8 pin RJ 45, 5V output max 2A) audio output 1Mbit CAN bus for connection for S8D repeater, compass or remote stick Speed command and Vario priority input + 4 additional inputs Two Rotary knobs with push function 3 push buttons User Interface Moving map with airspace track up option Airspace display Waypoints and Task display AHRS display (optional) Thermal assistant Display of 4 configurable values Display of 3 configurable values on map screen Waypoint navigation TASK navigation Flarm radar Flarm warnings Flarm Net Optional accessories AHRS activation with a CODE - no need any hardware upgrade Remote stick Compass module (not supported yet - under development) S8D repeater unit Oudie Bluetooth Nano/Nano3 Power supply Power input 10-16 V DC Consumption of LXNAV S8 at 12 V: 120 mA - minimum brightness without audio. 180 mA - maximum brightness without audio. Consumption of LXNAV S8D at 12 V: 90mA - maximum brightness Size and weight Standard 57mm (21") hole 61mm x 61mm x 95mm (exclusive connector) Weight: ~330g Images
